Ice-Air Vertical Concealed FCU

Category: Vertical Concealed
Replaces: 5FCVC02, 5FCVC03, 5FCVC04, 5FCVC06, 5FCVC08, 5FCVC10, 5FCVC12

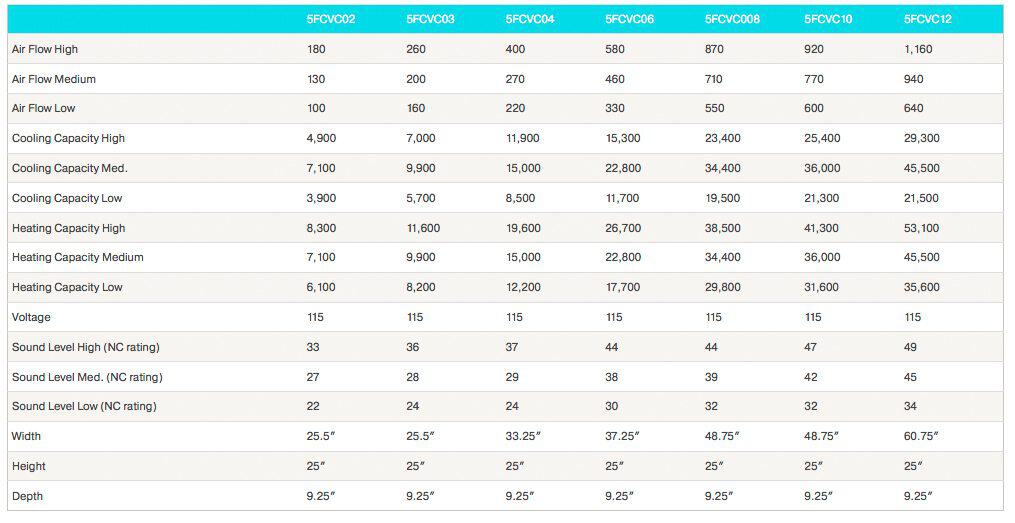

Ice Air Vertical Concealed FCU (Fan Coil Unit) Specifications

		5FCVC02	5FCVC03	5FCVC04	5FCVC06	5FCVC08	5FCVC10	5FCVC12
Air Flow High		180	260	400	580	870	920	1,160
Air Flow Med.		130	200	270	460	710	770	940
Air Flow Low		100	160	220	330	550	600	640
Cooling Capacity High		4,900	7,000	11,900	15,300	23,400	25,400	29,300
Cooling Capacity Med.		7,100	9,900	15,000	22,800	34,400	36,000	45,500
Cooling Capacity Low		3,900	5,700	8,500	11,700	19,500	21,300	21,500
Heating Capacity High		8,300	11,600	19,600	26,700	38,500	41,300	53,100
Heating Capacity Med.		7,100	9,900	15,000	22,800	34,400	36,000	45,500
Heating Capacity Low		6,100	8,200	12,200	17,700	29,800	31,600	35,600
Voltage		115	115	115	115	115	115	115
Sound Level High (NC Rating)		33	36	37	44	44	47	49
Sound Level Med. (NC Rating)		27	28	29	38	39	42	45
Sound Level Low (NC Rating)		22	24	24	30	32	32	34
Width		25.5″	25.5″	33.25″	37.25″	48.75″	48.75″	60.75″
Height		25″	25″	25″	25″	25″	25″	25″
Depth		9.25″	9.25″	9.25″	9.25″	9.25″	9.25″	9.25″
